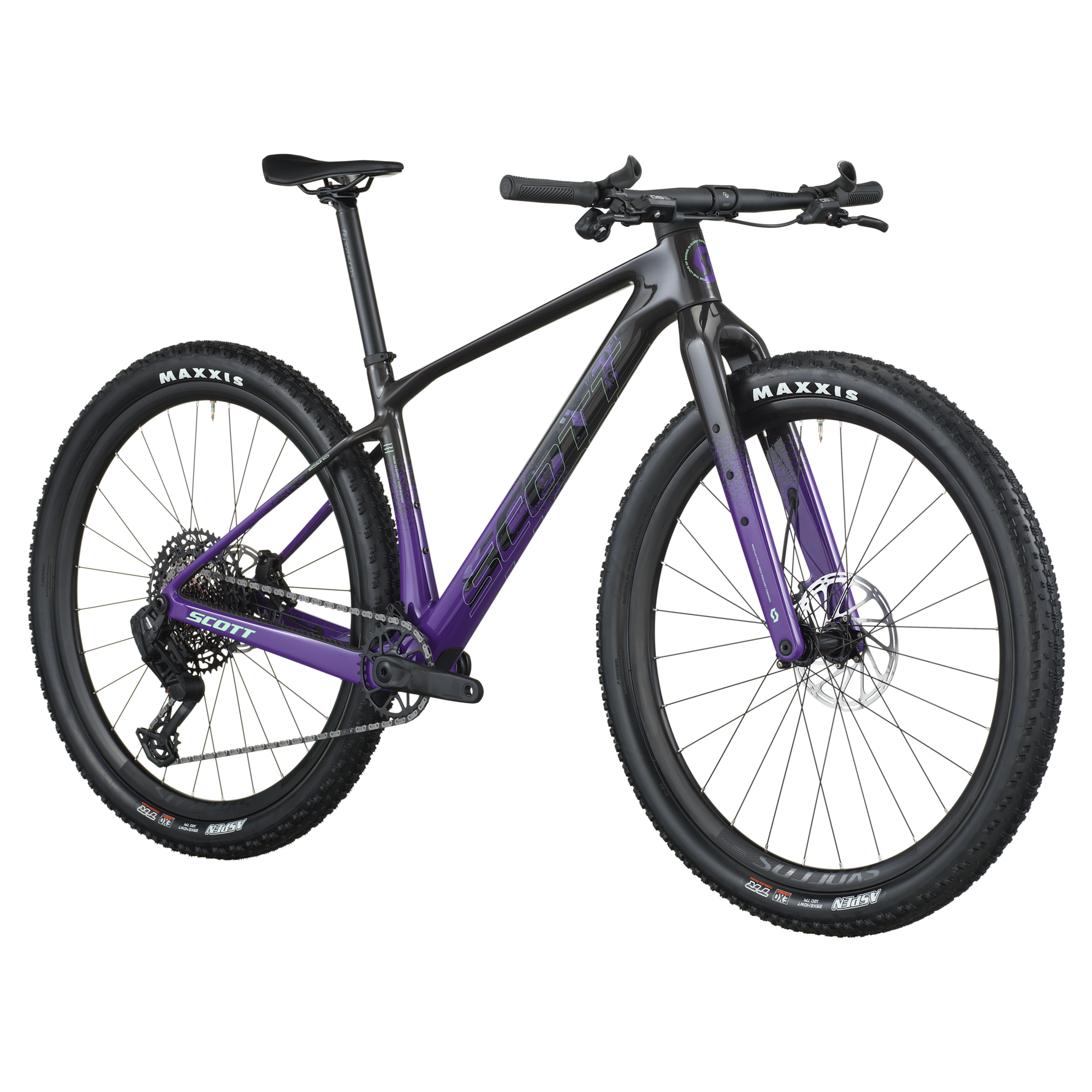

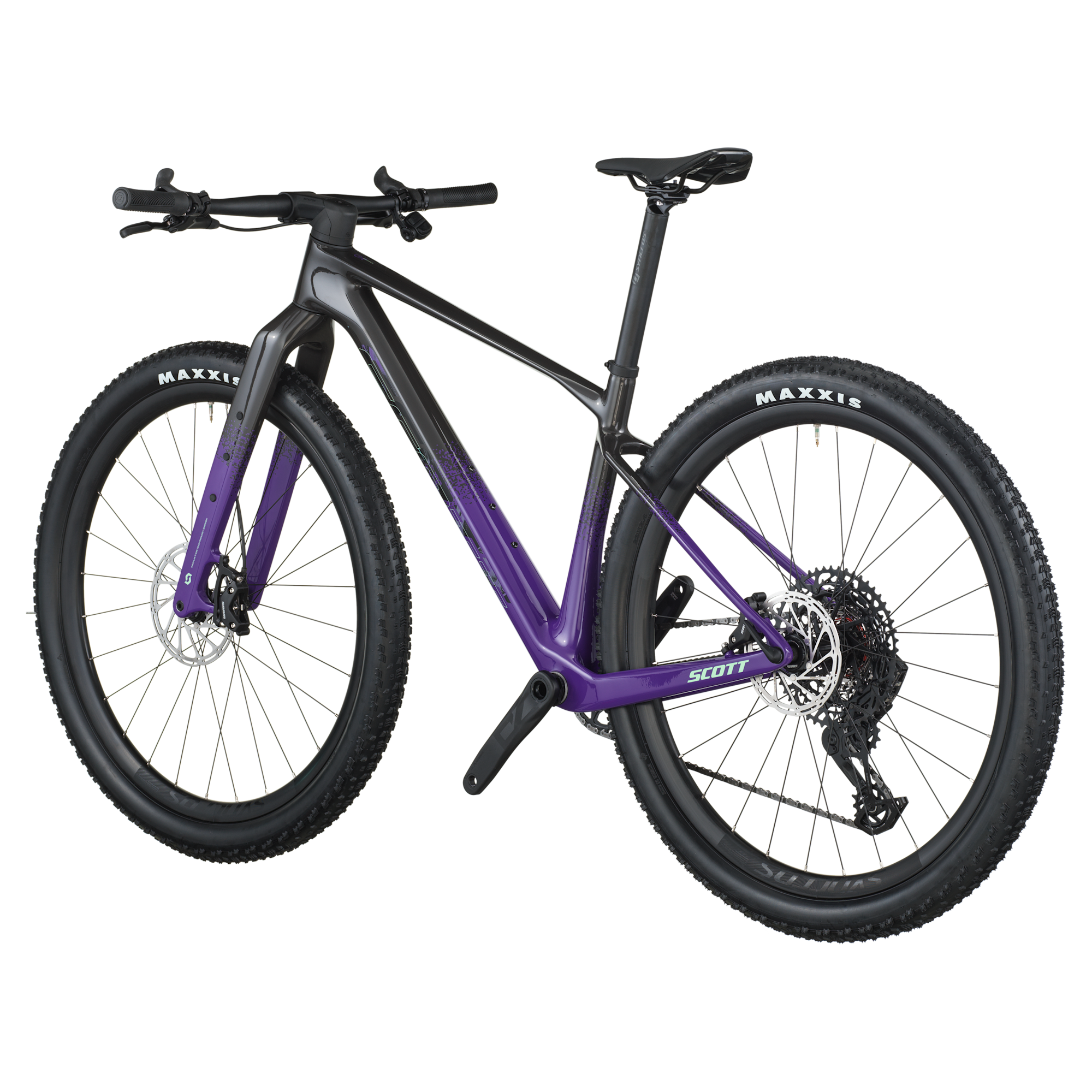

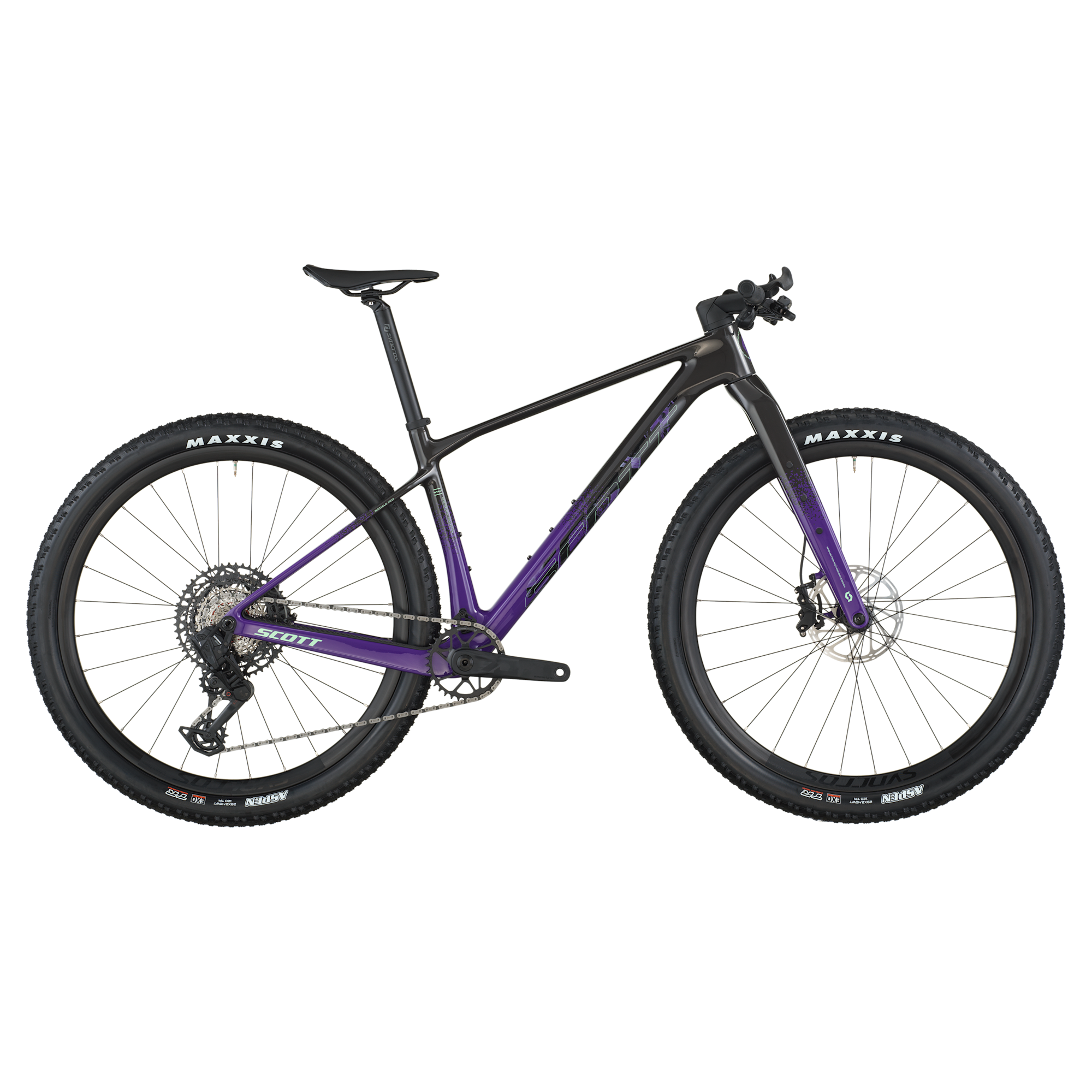

Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
Scott Scale Gravel 10 Bike
New in

Scott Scale Gravel 10 Bike

$3,630.00 AUD
1 in stock
Minus Plus
Description

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.

Features

  • Monocoque Construction: The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
  • Service Door: A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
  • Hollow Dropout Construction: The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
    head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).

Technical Specifications
  • Frame: Scale Carbon HMF
    Adjustable head angle, Syncros Cable Integration System
    Advanced Shock & Standing Damping System
    BB92, UDH Interface, 12x148mm with 55mm Chainline

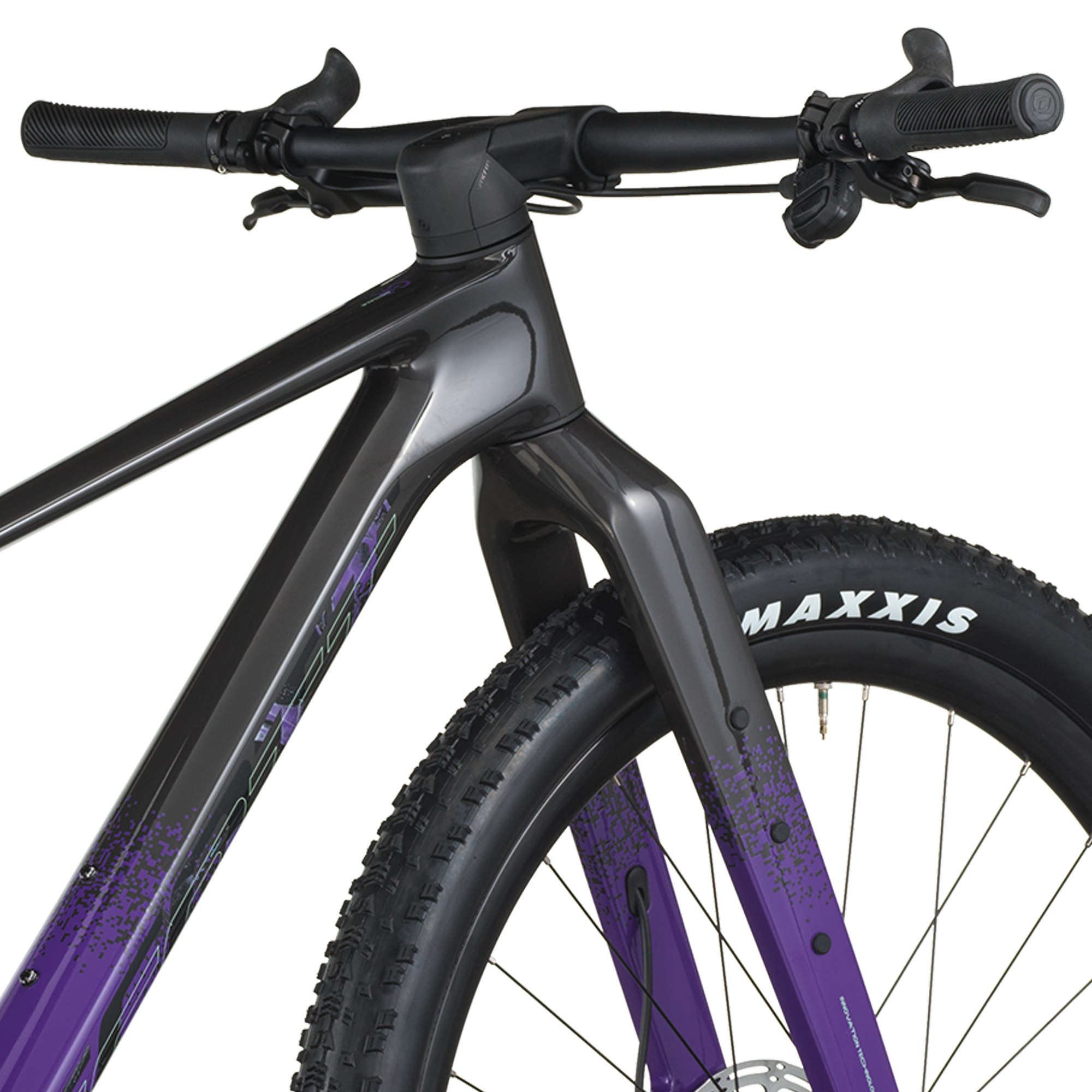

  • Fork: Scale Rigid HMF
    Postmount Disc Standard
    Tapered Carbon steerer

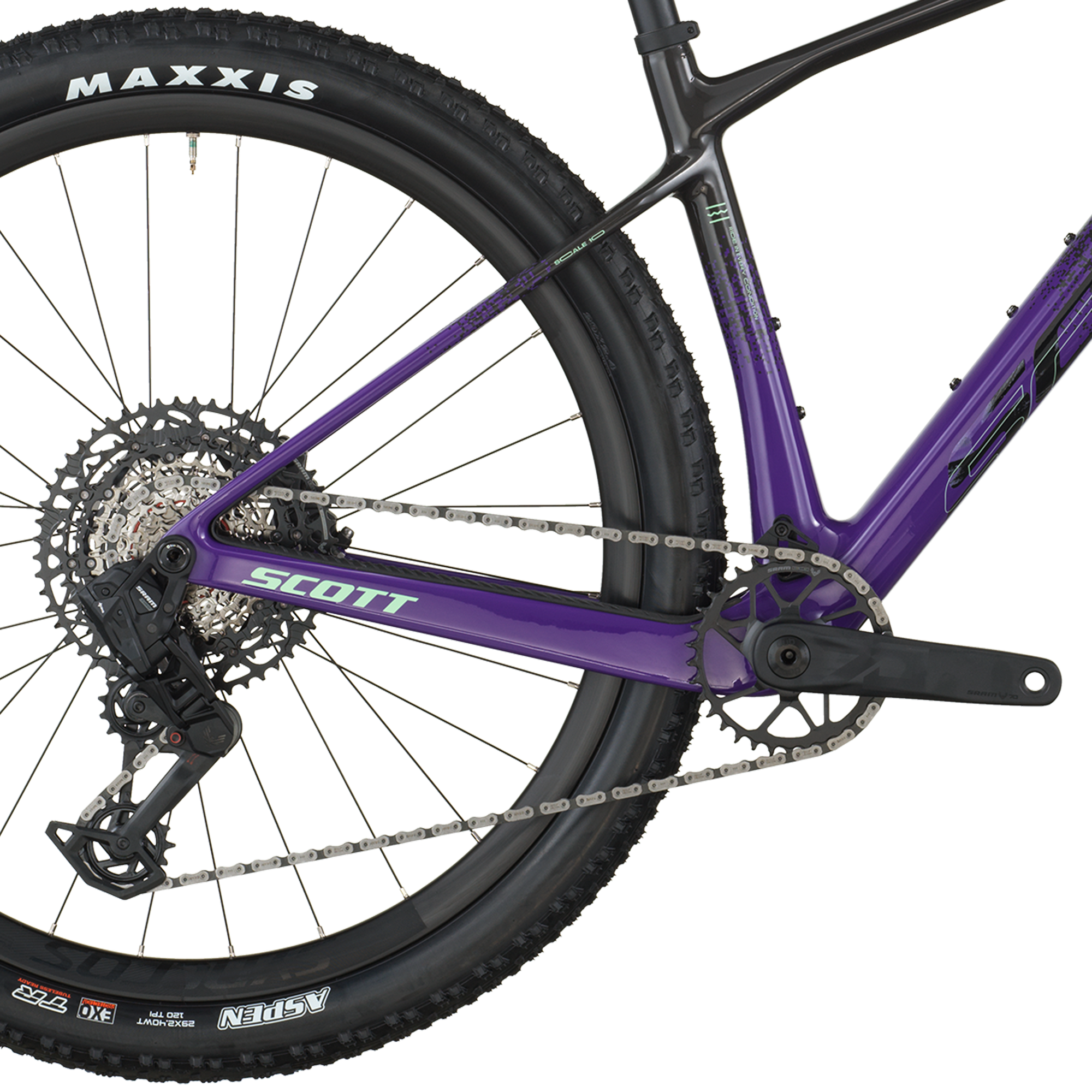

  • Rear Derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed
    Wireless Electronic Shift System
  • Shifters: SRAM AXS Pod Controller

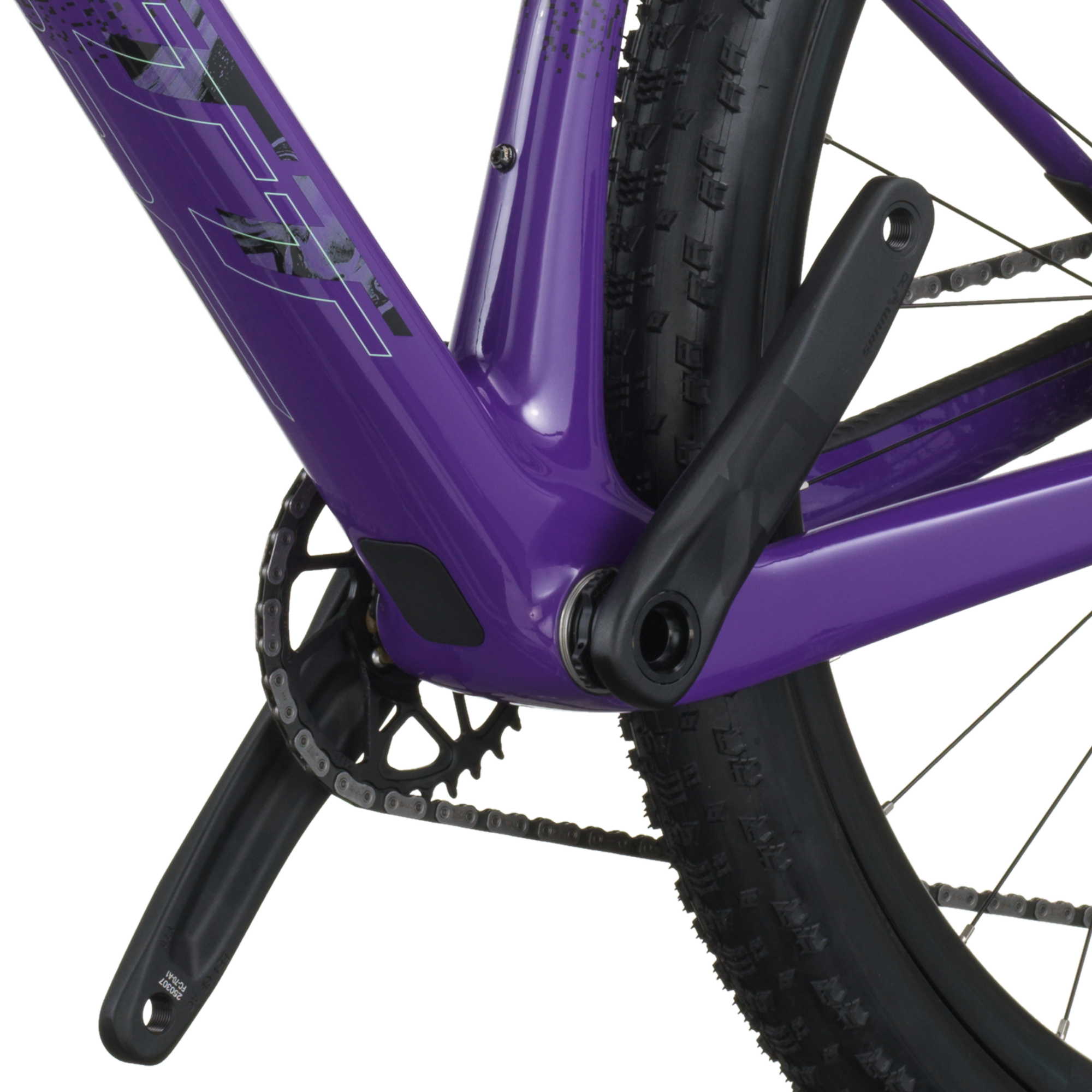

  • Crankset: SRAM Eagle 70 Transmission
    DUB, 55mm CL, 34T
  • Chainguide: SCOTT custom
  • BB-Set: SRAM DUB PF 92 MTB Wide, shell 41x92mm
  • Chain: SRAM CN Eagle 70 Transmission
  • Cassette: SRAM Eagle XS 1270 V2 Transmission 10-52
  • Brakes: SRAM DB6 4-Piston Disc
  • Rotor: SRAM Centerline CL Rotors 180/F and 160/R

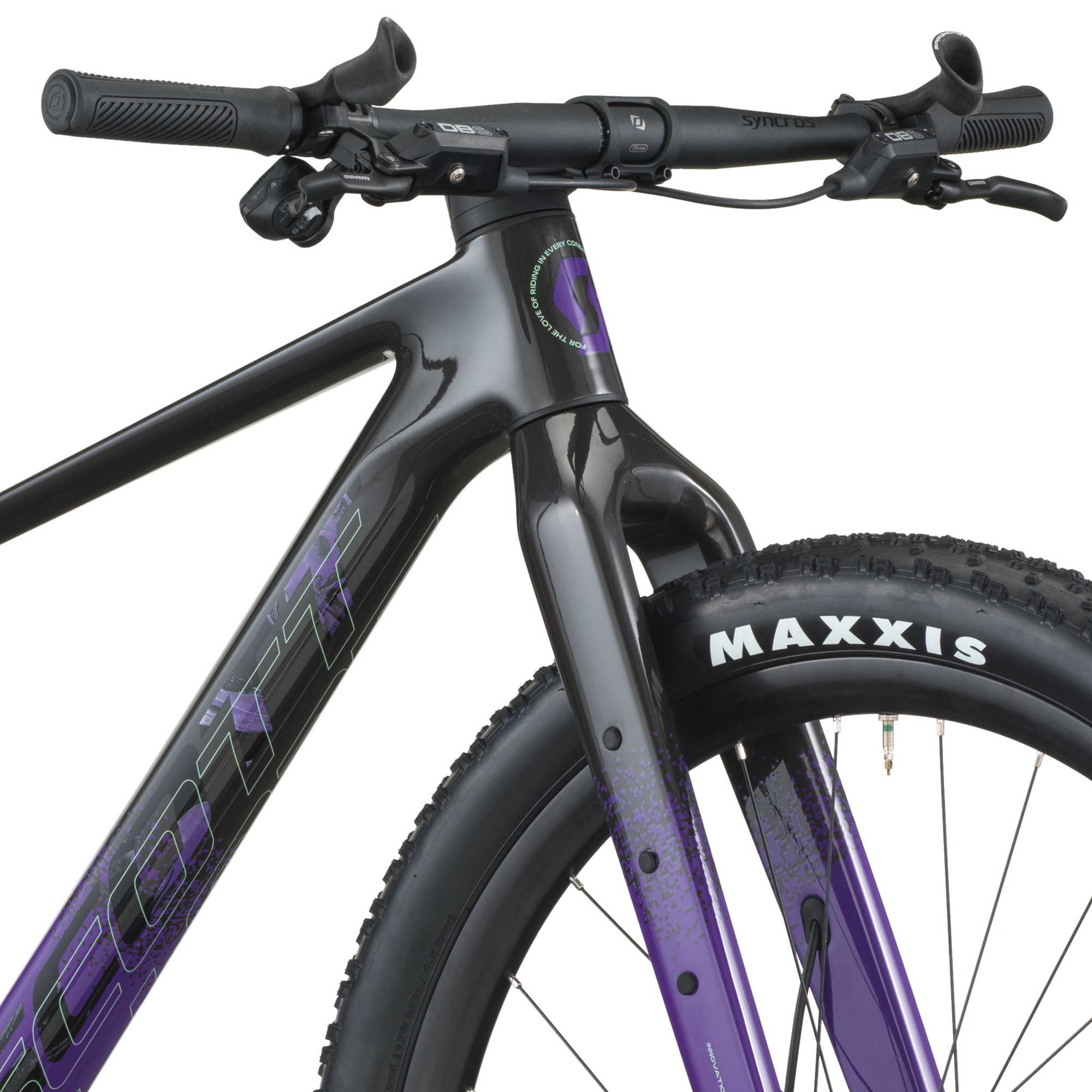

  • Handlebar: Syncros Fraser 2.0 XC Alloy 6061 D.B.
    Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips
  • H'stem: Syncros XC 2.0
    Syncros Cable Integration System
    -12° rise, 6061 Alloy, 31.8mm, 1 1/8"

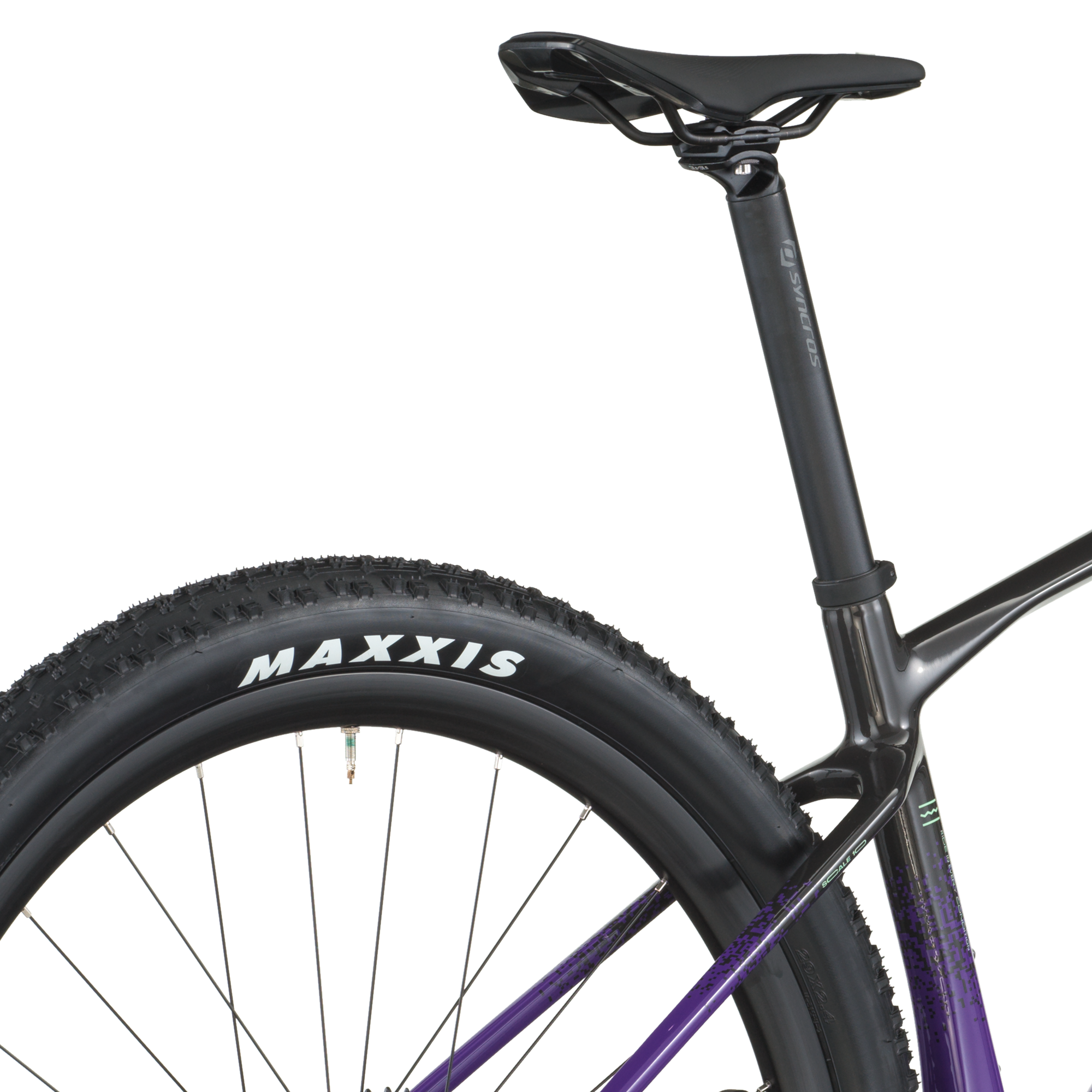

  • Seatpost: Syncros Duncan 2.0, 10mm offset
    31.6x400mm
  • Seat: Syncros Belcarra V2.0 Cut Out
    CRMO rails
  • Headset: Syncros - Acros Angle adjust & Cable Routing HS System
    +-0.6° head angle adjustment
    ZS56/28.6 – ZS56/40 MTB
  • Front Hub: Formula CL-811, 15x110mm
  • Rear Hub: Formula CL-3248, 12x148mm
  • Spokes: Stainless Black 15G, 1.8mm
  • Rims: Syncros X-28, 28H, Tubeless ready
  • Front Tire: Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
    Tubeless Ready, EXO
  • Rear Tire: Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
    Tubeless Ready, EXO
  • Extras: SRAM AXS Powerpack
  • Accessories: Spirgrips+ Inner Bar ends
  • Approx weight in KG: 10.5 (Tubless setup)
  • Approx weight in LBS: 23.15 (Tubless setup)
  • Max. System Weight: 120kg
    The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
